Select, group and reduce data sets with CommonDataModel

As an example we use the NOAA OISST v2 dataset available at: https://psl.noaa.gov/thredds/fileServer/Datasets/noaa.oisst.v2.highres/sst.day.mean.2023.nc

using CommonDataModel: @select, @CF_str, @groupby, groupby
using Dates
using Downloads: download
using CairoMakie # use GLMakie for interactive plots
#using GLMakie
using IntervalSets
using NCDatasets
using Statistics

Some helper functions for plotting maps and timeseries with Makie . Note that the variable v is an array type of CommonDataModel. All related variables sharing the same dimensions (in particular coordinate variables) can be access by subsetting v with the name of the related variable.

function nicemaps(v; timeindex = 1, lon = v["lon"][:], lat = v["lat"][:], title="")
    fig = Figure()
    ax = Axis(fig[1, 1]; aspect = AxisAspect(1/cosd(mean(lat))), title)
    hm = heatmap!(ax,lon,lat,v[:,:,timeindex])
    Colorbar(fig[1,2],hm)
    return fig
end

function nicetimeseries(v::AbstractVector; time = v["time"][:], title = nothing)
    fig, ax, ln = lines(time,v[:])
    if !isnothing(title)
        ax.title[] = title
    end
    return fig
end

nicetimeseries (generic function with 1 method)

Download the data file (unless already downloaded) The dataset contains the variables lon (longitude), lat (latitude), time and sst (sea surface temperature).

The service is a bit unreliable, the original URL is https://psl.noaa.gov/thredds/fileServer/Datasets/noaa.oisst.v2.highres/sst.day.mean.2023.nc

url = "http://data-assimilation.net/upload/Alex/SST_2023/sst.day.mean.2023.nc"

fname = "sst.day.mean.2023.nc"
if !isfile(fname)
    download(url,fname)
end

"sst.day.mean.2023.nc"

Select a subset by values from coordinate variables

Open the dataset and access the variable sst. Select the domain from 300°E to 360°E and 0°N to 46°N and the closest time instance to the 1 April 2023.

ds = NCDataset(fname)
ncsst = ds["sst"]

sst (1440 × 720 × 351)
  Datatype:    Union{Missing, Float32} (Float32)
  Dimensions:  lon × lat × time
  Attributes:
   long_name            = Daily Sea Surface Temperature
   units                = degC
   valid_range          = Float32[-3.0, 45.0]
   missing_value        = -9.96921e36
   precision            = 2.0
   dataset              = NOAA High-resolution Blended Analysis
   var_desc             = Sea Surface Temperature
   level_desc           = Surface
   statistic            = Mean
   parent_stat          = Individual Observations
   actual_range         = Float32[-1.8, 36.94]

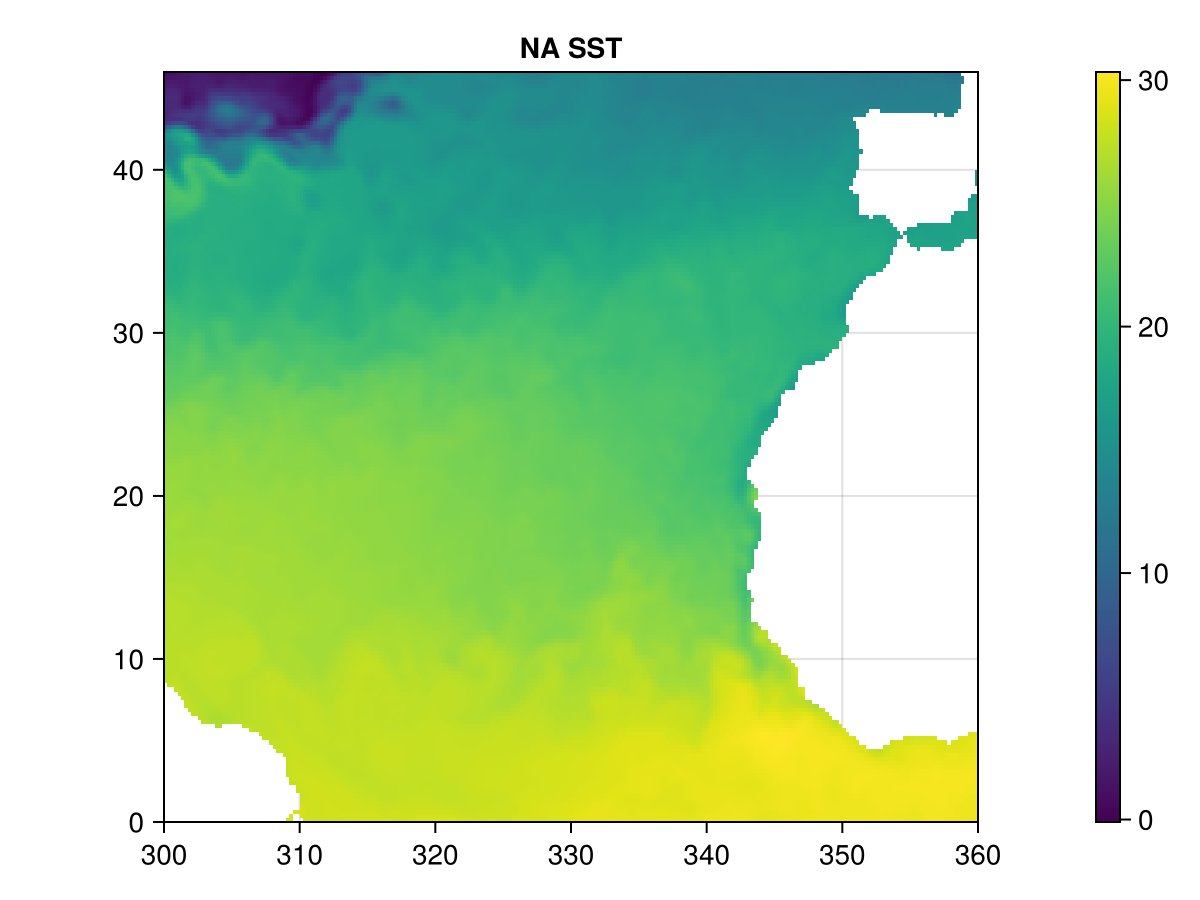

ncsst2 is a lazy view of the netCDF variable ncsst subjected to the following selection criteria. The names lon, lat and time correspond to netCDF variables in the datasets. The operator ≈ looks for the nearest time instance. Use e.g. time ≈ DateTime(2023,4,1) ± Day(1) to set a tolerance The operators ≈ and ± are typed as \approx and \pm followed by the TAB key.

ncsst2 = @select(ncsst,300 <= lon <= 360 && 0 <= lat <= 46 && time ≈ DateTime(2023,4,1))

nicemaps(ncsst2, title = "NA SST")

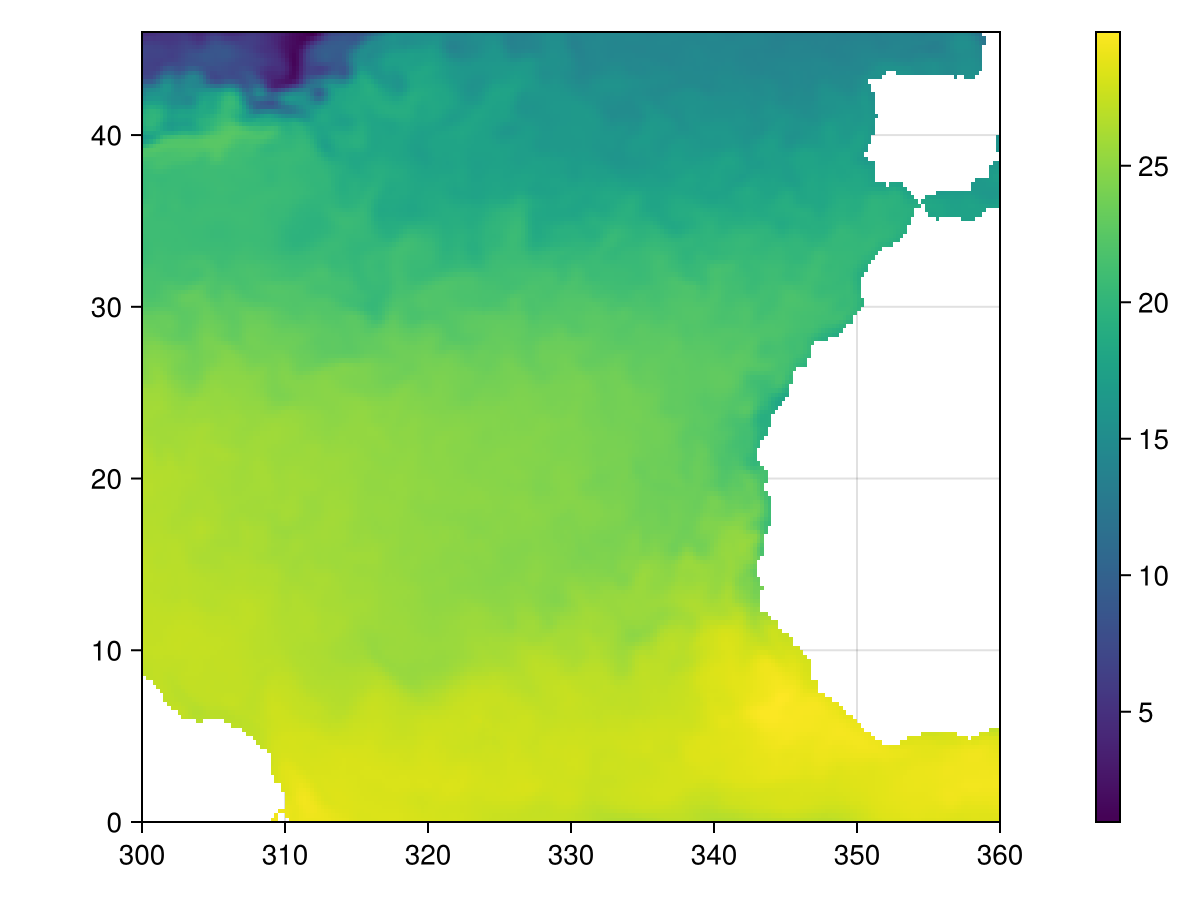

One can also select a subset by indices and by values. Here we load the first time instance and the domain from 300°E to 360°E and 0°N to 46°N

ncsst_first = view(ncsst,:,:,1)
ncsst_na = @select(ncsst_first,300 <= lon <= 360 && 0 <= lat <= 46)
nicemaps(ncsst_na)

Select all data from a given month: the julia function Dates.month is first applied element-wise to all elements of time before comparing to 3.

ncsst_march = @select(ncsst,Dates.month(time) == 3)

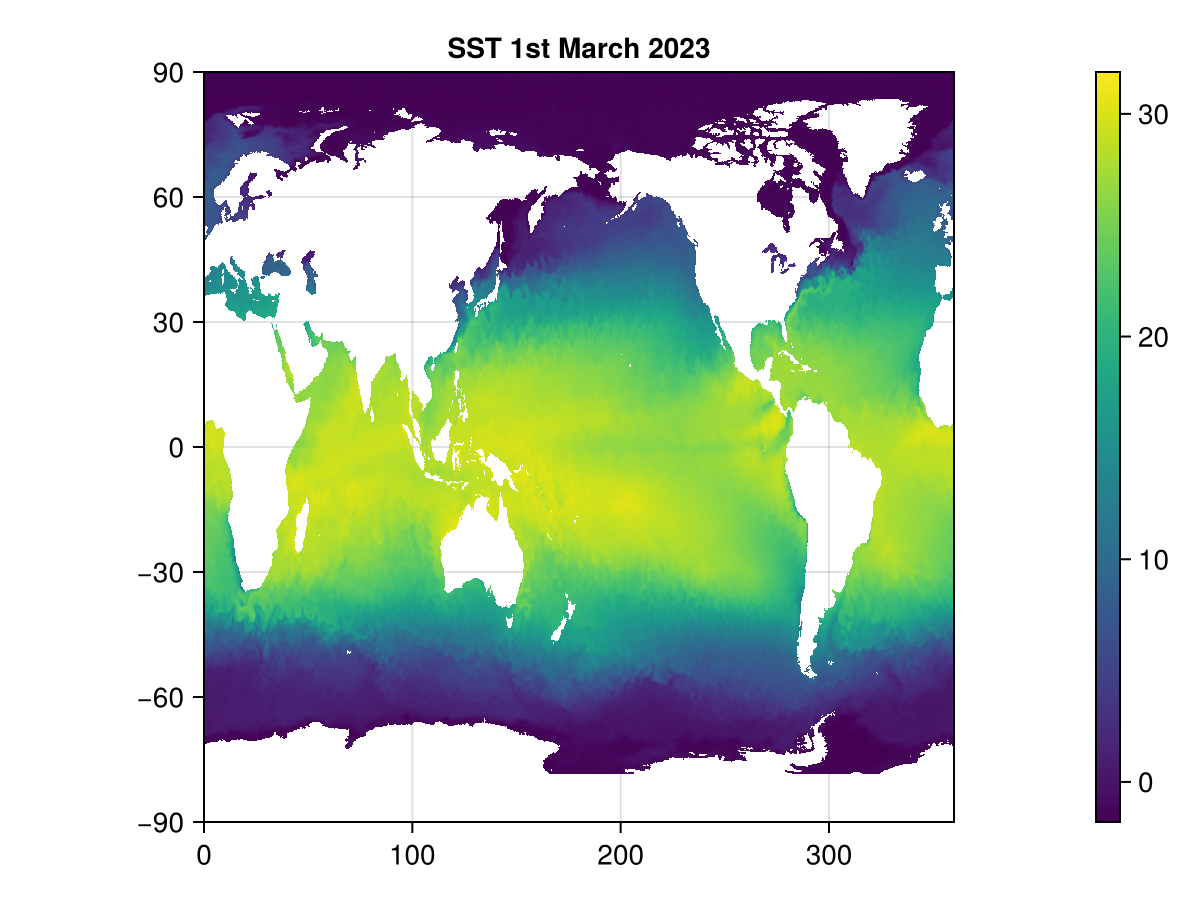

nicemaps(ncsst_march, timeindex = 1, title = "SST 1st March 2023")

Select multiple months using e.g. an interval (from IntervalSets). The upper bound of the interval is inclusive. ∈ can be typed by writing \in directly followed by the TAB key.

ncsst_march_april = @select(ncsst,Dates.month(time) ∈ 3..4)

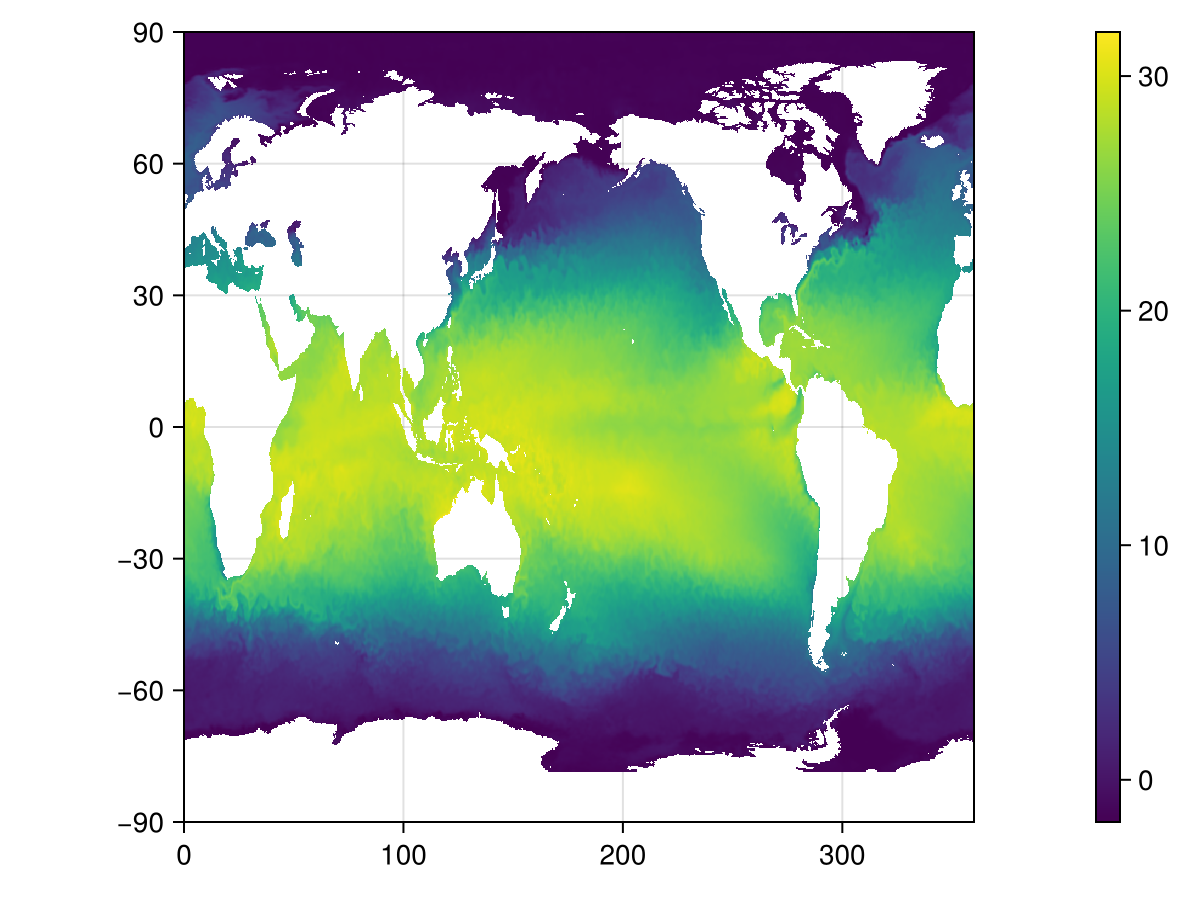

nicemaps(ncsst_march_april)

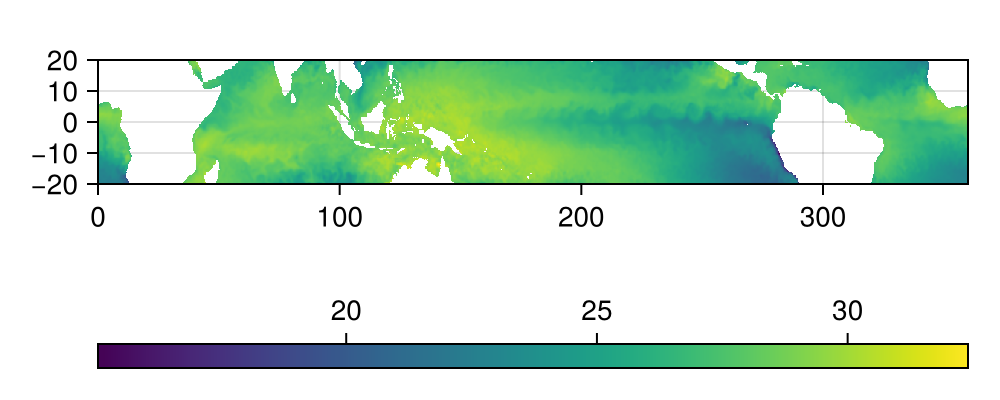

It is allowed to use julia functions in the data selection; here the abs function is used to select the equalorial region between and 20°S and 20°N

ncsst_equatorial = @select(ncsst,abs(lat) < 20)
lon = ncsst_equatorial["lon"][:]
lat = ncsst_equatorial["lat"][:]
fig = Figure(size = (500, 200));
ax = Axis(fig[1, 1]; aspect = AxisAspect(7));
hm = heatmap!(ax,lon,lat,ncsst_equatorial[:,:,1]);
Colorbar(fig[2,1],hm,vertical = false);
fig

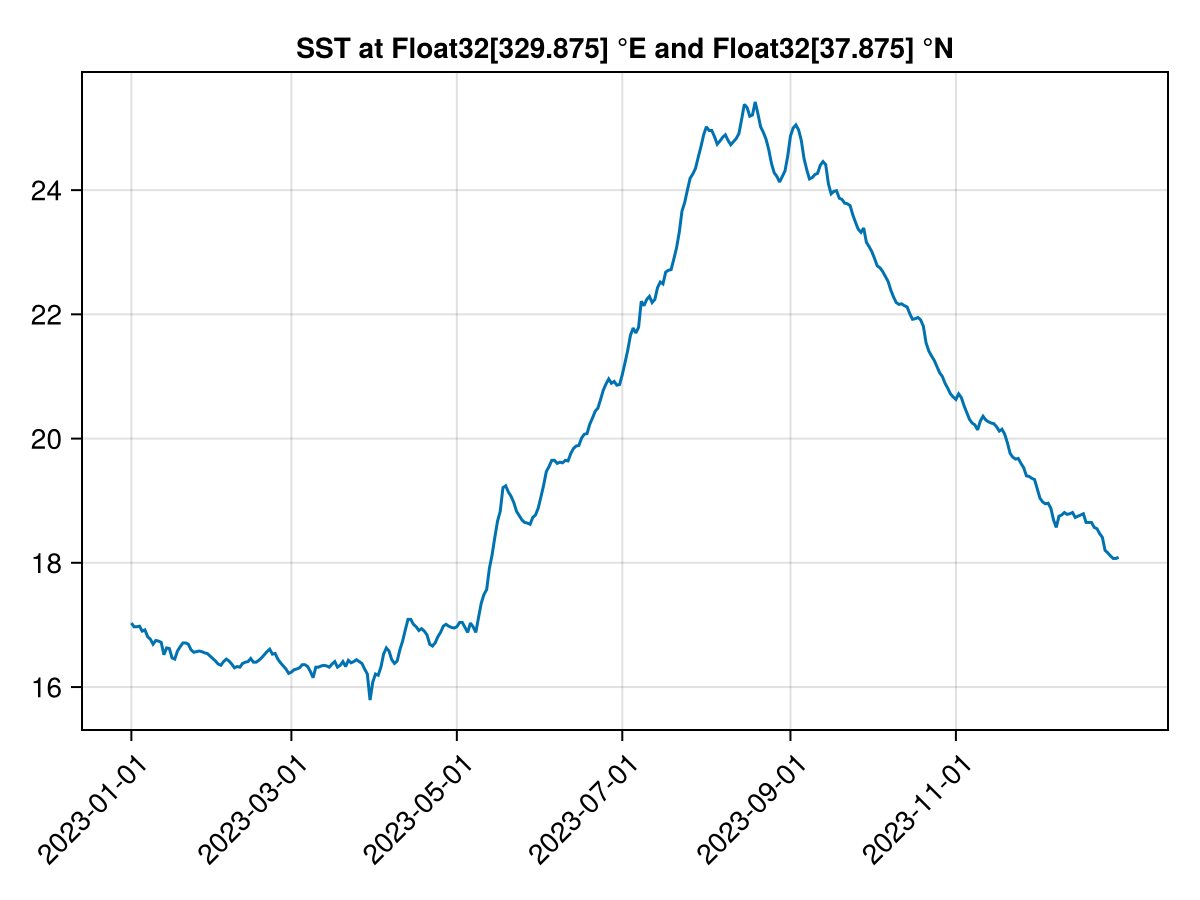

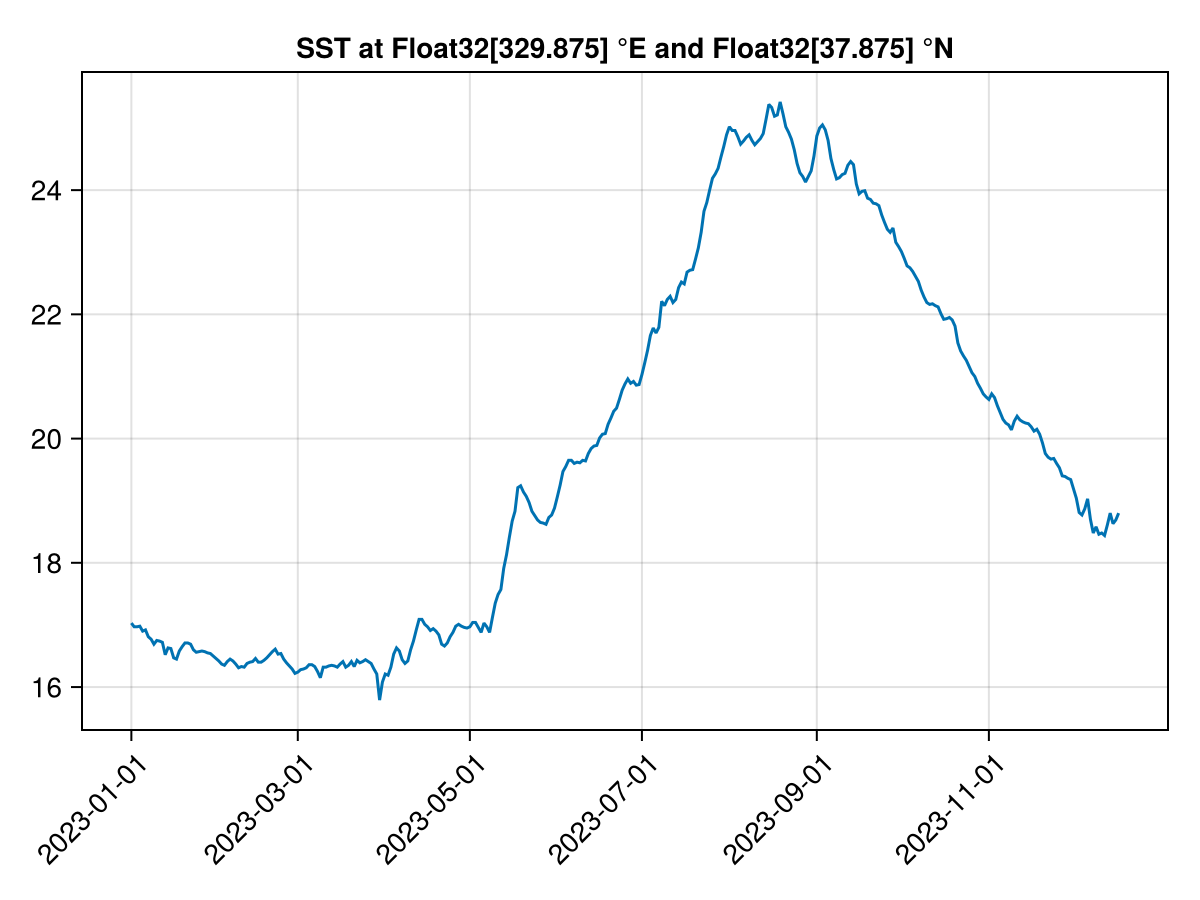

Extract the time series of the closest location to a given point

ncsst_timeseries = @select(ncsst,lon ≈ 330 && lat ≈ 38)
lon = ncsst_timeseries["lon"][:]
lat = ncsst_timeseries["lat"][:]
nicetimeseries(ncsst_timeseries, title = "SST at $(lon) °E and $(lat) °N")

Extract the time series of the closest point with a specified tolerance If there is no data nearby an empty array is returned

ncsst_outside = @select(ncsst,lon ≈ 330 && lat ≈ 93 ± 0.1)
isempty(ncsst_outside)
size(ncsst_outside)

(0, 351)

Rather than selecting SST based on coordinates, we can also do the reverse: select the longitude based on SST. Find the longitudes where the SST exceeds 30 at the equator. sst can contain missing values (e.g. on land). coalesce is necessary here to replace the missing values by false in the boolean expression.

ds_equator = @select(ds,lat ≈ 0 && time ≈ DateTime(2023,1,1))
lon_equator = @select(ds_equator,coalesce(sst > 30,false))["lon"]

View:  [497, 498, 499, 500, 501, 502, 503, 504, 505, 506, 507, 514, 515, 516, 517, 518, 519, 520, 521, 522, 537, 538, 539, 540, 541, 587, 588, 589, 590, 591, 592, 593, 594, 595, 596, 597, 598, 599, 600, 601, 602, 603, 604, 605, 606, 607, 608, 609, 610, 611, 612, 613, 614, 615]
 lon  (1440)
   Datatype:    Float32 (Float32)
   Dimensions:  lon
   Attributes:
    long_name            = Longitude
    standard_name        = longitude
    units                = degrees_east
    actual_range         = Float32[0.125, 359.875]
    axis                 = X

The first 3 longitude valeus where SST exceeds 30°C at the equator for 2023-01-01

lon_equator[1:3]

3-element Vector{Float32}:
 124.125
 124.375
 124.625

Grouping and reducing

With the function groupby and macro @groupby we can group the variable by a given criteria. For each group, we can then apply a reducting function (mean, sum, std, ...).

For example group the SST by month and average per month:

sst_mean = mean(@groupby(ncsst,Dates.Month(time)))
size(sst_mean)

(1440, 720, 12)

Instead of using the macro one can also use the function groupby:

sst_mean = mean(groupby(ncsst,:time => Dates.Month))
nicemaps(sst_mean, timeindex = 1, title = "Mean January SST")

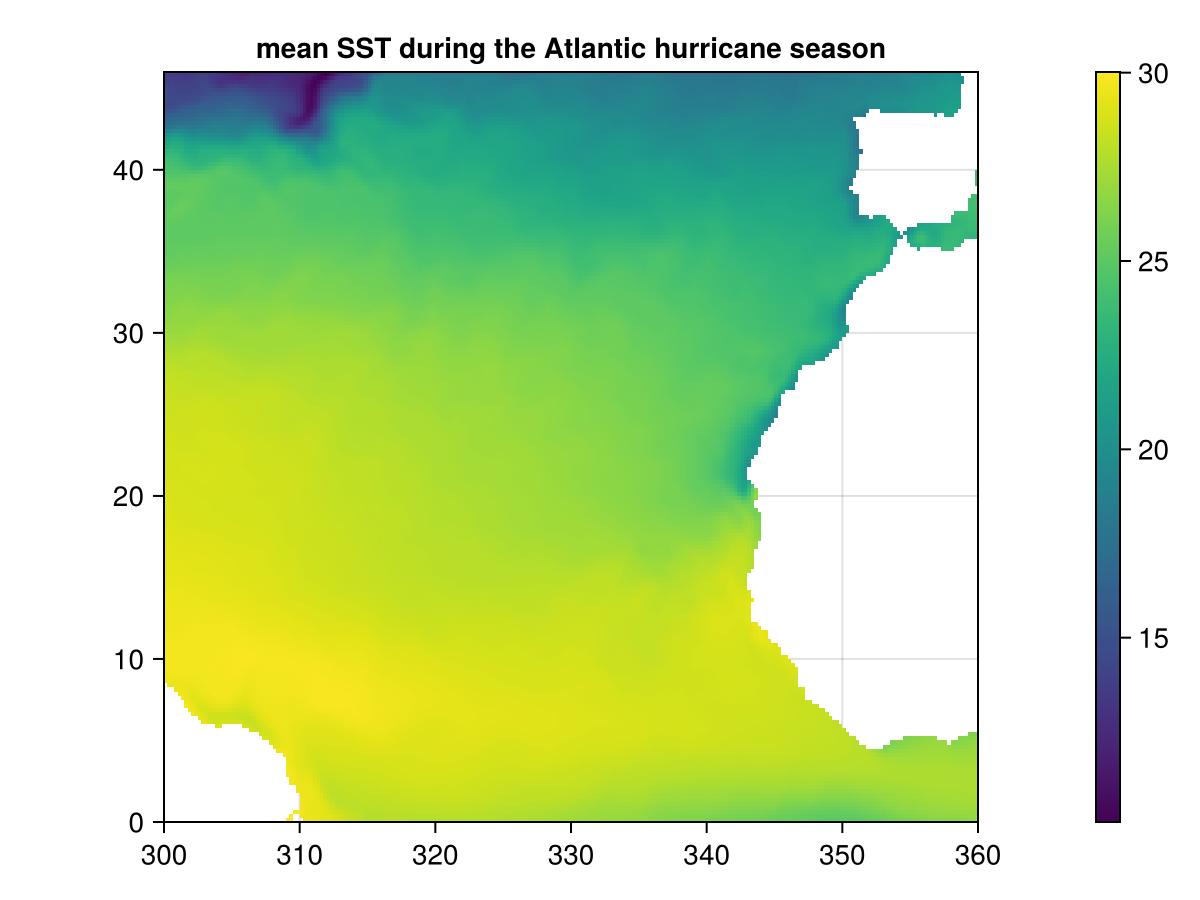

Use custom julia function for grouping: The Atlantic hurricane season is the period in a year, from June 1 through November 30, when tropical or subtropical cyclones are most likely to form in the North Atlantic Ocean. The data will be grouped into two cases: false (time outside the Atlantic hurricane season) and true (time is within the Atlantic hurricane season). We plot only the 2nd group.

sst_na = @select(ncsst,300 <= lon <= 360 && 0 <= lat <= 46)
sst_hs = mean(@groupby(sst_na,DateTime(year(time),6,1) <= time <= DateTime(year(time),11,30)))

nicemaps(sst_hs,timeindex = 2, title = "mean SST during the Atlantic hurricane season")

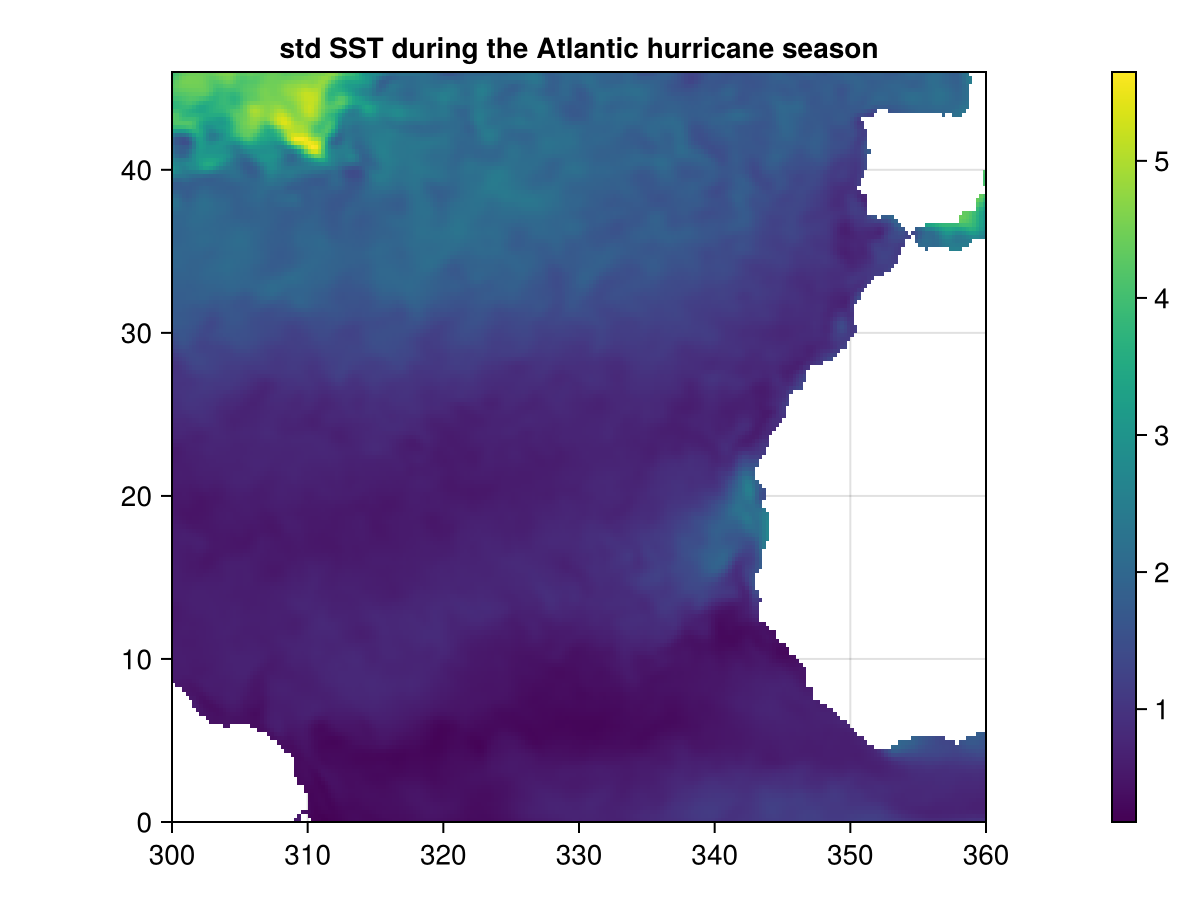

Use a user defined function is_atlantic_hurricane_season without the @groupby macro:

is_atlantic_hurricane_season(time) =
    DateTime(year(time),6,1) <= time <= DateTime(year(time),11,30)

sst_std_hs = std(groupby(sst_na,:time => is_atlantic_hurricane_season));

nicemaps(sst_std_hs,timeindex = 2, title = "std SST during the Atlantic hurricane season")

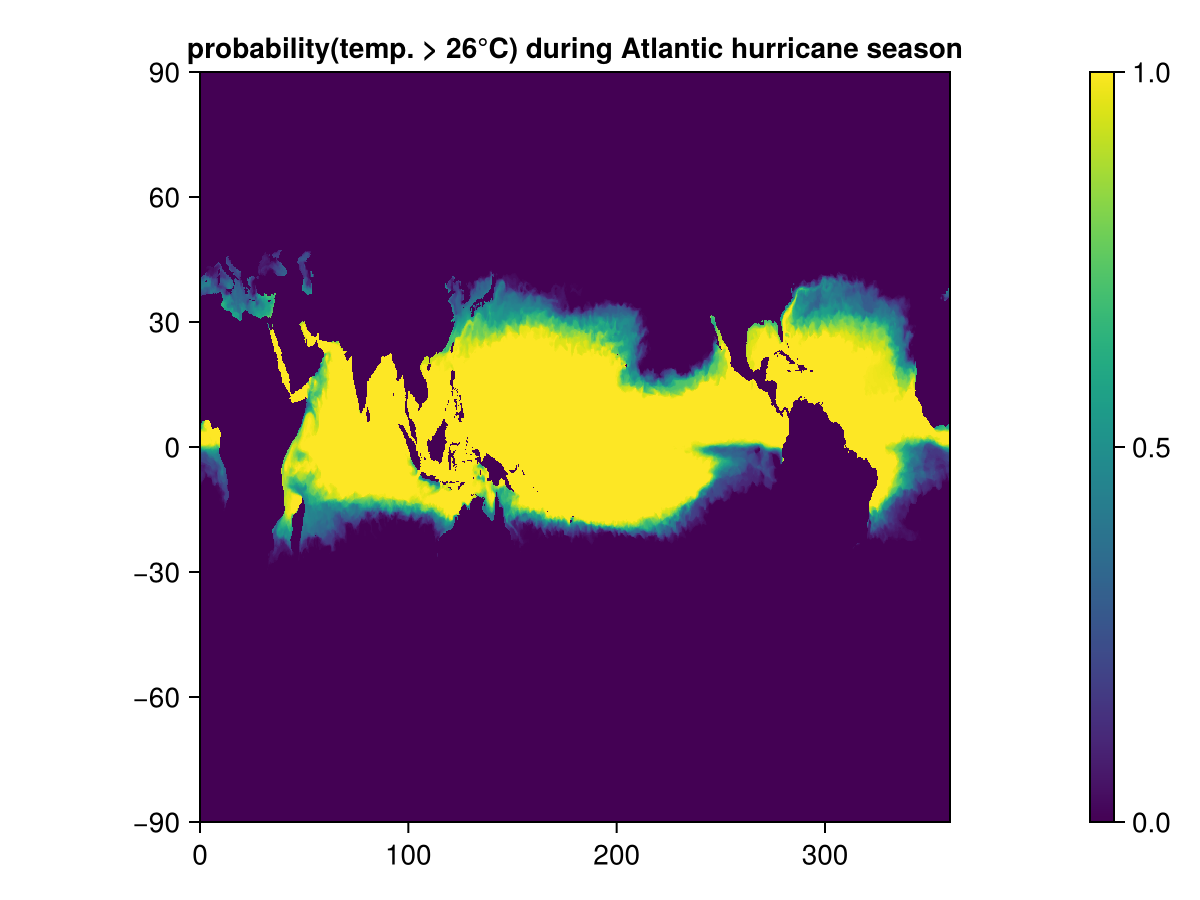

Use a custom aggregation function to estimate the probability that the temperature exceeds 26°C during the Atlantic hurricane season

using CommonDataModel: GroupedVariable
prob_hot(x; dims=:) = mean(coalesce.(x .> 26,false); dims=dims)
prob_hot(gv::GroupedVariable) = reduce(prob_hot,gv)

is_atlantic_hurricane_season(time) =
    DateTime(year(time),6,1) <= time <= DateTime(year(time),11,30)

sst_my_mean = prob_hot(groupby(ncsst,:time => is_atlantic_hurricane_season));
size(sst_my_mean)

(1440, 720, 2)

The reducing will create two slices depending wether the condition is false (1st slice) or true (2nd slice)

nicemaps(sst_my_mean,timeindex=2, title = "probability(temp. > 26°C) during Atlantic hurricane season")
