Polygon cutting

export cut

What is cut?

Cut a polygon with a line segment, as in Matlab's cutpolygon.

import GeoInterface as GI, GeometryOps as GO
using CairoMakie
using Makie

poly = GI.Polygon([[(0.0, 0.0), (10.0, 0.0), (10.0, 10.0), (0.0, 10.0), (0.0, 0.0)]])
line = GI.Line([(5.0, -5.0), (5.0, 15.0)])
cut_polys = GO.cut(poly, line)

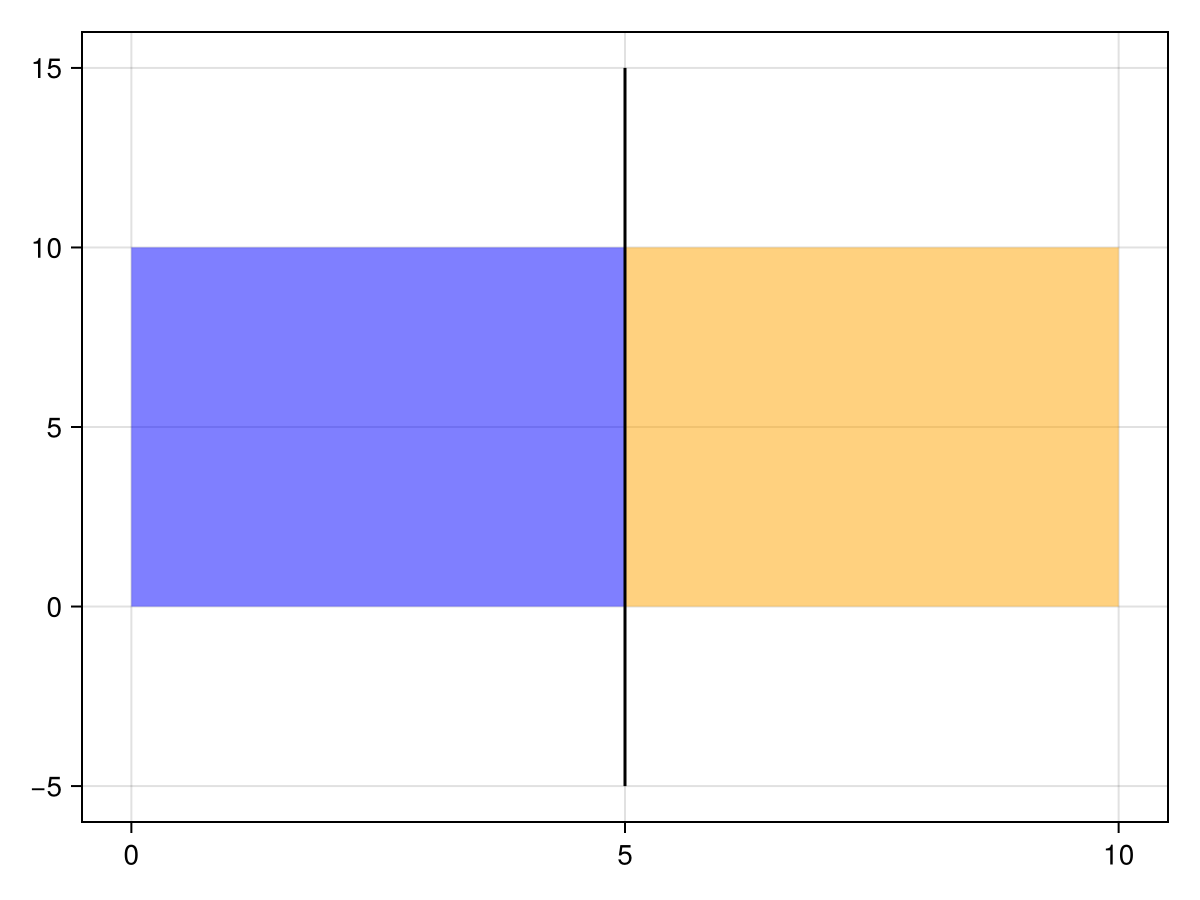

f, a, p1 = Makie.poly(collect(GI.getpoint(cut_polys[1])); color = (:blue, 0.5))
Makie.poly!(collect(GI.getpoint(cut_polys[2])); color = (:orange, 0.5))
Makie.lines!(GI.getpoint(line); color = :black)
f

Implementation

Uses Greiner-Hormann clipping helpers. See the polygon splitting discussion.

"""
    cut(geom, line, [T::Type])

Return the pieces of `geom` cut by `line`, preserving the geometry type. If the line does not
cut fully through, return `[geom]`.

Cuts through vertices are not supported.

# Example

```jldoctest
import GeoInterface as GI, GeometryOps as GO

poly = GI.Polygon([[(0.0, 0.0), (10.0, 0.0), (10.0, 10.0), (0.0, 10.0), (0.0, 0.0)]])
line = GI.Line([(5.0, -5.0), (5.0, 15.0)])
cut_polys = GO.cut(poly, line)
GI.coordinates.(cut_polys)

output

2-element Vector{Vector{Vector{Vector{Float64}}}}:
 [[[0.0, 0.0], [5.0, 0.0], [5.0, 10.0], [0.0, 10.0], [0.0, 0.0]]]
 [[[5.0, 0.0], [10.0, 0.0], [10.0, 10.0], [5.0, 10.0], [5.0, 0.0]]]
```
"""
cut(geom, line, ::Type{T} = Float64) where {T <: AbstractFloat} = cut(FosterHormannClipping(), geom, line, T)
cut(m::Manifold, geom, line, ::Type{T} = Float64) where {T <: AbstractFloat} = cut(FosterHormannClipping(m), geom, line, T)
cut(alg::FosterHormannClipping{M, A}, geom, line, ::Type{T} = Float64) where {T <: AbstractFloat, M, A} =
    _cut(alg, T, GI.trait(geom), geom, GI.trait(line), line; exact = True())

#= Cut a given polygon by given line. Add polygon holes back into resulting pieces if there
are any holes. =#
function _cut(alg::FosterHormannClipping{M, A}, ::Type{T}, ::GI.PolygonTrait, poly, ::GI.LineTrait, line; exact) where {T, M, A}
    ext_poly = GI.getexterior(poly)
    poly_list, intr_list, _ = _build_a_list(alg, T, ext_poly, line; exact)
    n_intr_pts = length(intr_list)

If an impossible number of intersection points, return original polygon

    if n_intr_pts < 2 || isodd(n_intr_pts) || any(
        p -> _point_filled_curve_orientation(alg.manifold, p, ext_poly; exact) != point_out,
        GI.getpoint(line),
    )
        return [_fh_as_poly(_fh_out_point_type(alg.manifold, poly, T), poly, T)]
    end

Cut polygon by line

    cut_coords = _cut(alg, T, ext_poly, line, poly_list, intr_list, n_intr_pts; exact)

Close coords and create polygons

    for c in cut_coords
        push!(c, c[1])
    end
    cut_polys = [GI.Polygon([c]) for c in cut_coords]

Add original polygon holes back in

    remove_idx = falses(length(cut_polys))
    _add_holes_to_polys!(alg, T, cut_polys, GI.gethole(poly), remove_idx; exact)
    return cut_polys
end

Many types aren't implemented

function _cut(::Type{T}, trait::GI.AbstractTrait, geom, line; kwargs...) where T
    @assert(
        false,
        "Cutting of $trait isn't implemented yet.",
    )
    return nothing
end

#= Cutting algorithm inspired by Greiner and Hormann clipping algorithm. Returns coordinates
of cut geometry in Vector{Vector{Tuple}} format.

Note: degenerate cases where intersection points are vertices do not work right now. =#
function _cut(alg::FosterHormannClipping{M, A}, ::Type{T}, geom, line, geom_list, intr_list, n_intr_pts; exact) where {T, M, A}

Sort and categorize the intersection points

    sort!(intr_list, by = x -> geom_list[x].fracs[2])

With both line endpoints outside, consecutive crossings delimit inside segments. Pair them in line order, independently of the polygon's starting vertex/winding.

    for (i, idx) in enumerate(intr_list)
        geom_list[idx] = PolyNode(geom_list[idx]; ent_exit = isodd(i))
    end
    source = _fh_egress_ring(alg.manifold, geom)
    P = _fh_out_point_type(alg.manifold, geom, T)

Add first point to output list; cross-back matching stays in kernel coordinates.

    return_coords = [P[_fh_egress(geom_list[1], source, T)]]
    cross_backs = Union{Nothing, typeof(geom_list[1].point)}[nothing]
    poly_idx = 1
    n_polys = 1

Walk around original polygon to find split polygons

    for (pt_idx, curr) in enumerate(geom_list)
        if pt_idx > 1
            push!(return_coords[poly_idx], _fh_egress(curr, source, T))
        end
        if curr.inter

Find cross back point for current polygon

            intr_idx = findfirst(x -> equals(curr.point, geom_list[x].point), intr_list)
            cross_idx = intr_idx + (curr.ent_exit ? 1 : -1)
            cross_idx = cross_idx < 1 ? n_intr_pts : cross_idx
            cross_idx = cross_idx > n_intr_pts ? 1 : cross_idx
            cross_backs[poly_idx] = geom_list[intr_list[cross_idx]].point

Check if current point is a cross back point

            next_poly_idx = findfirst(x -> equals(x, curr.point), cross_backs)
            if isnothing(next_poly_idx)
                push!(return_coords, P[_fh_egress(curr, source, T)])
                push!(cross_backs, curr.point)
                n_polys += 1
                poly_idx = n_polys
            else
                push!(return_coords[next_poly_idx], _fh_egress(curr, source, T))
                poly_idx = next_poly_idx
            end
        end
    end
    return return_coords
end

---
