Covers

export covers

What is covers?

The covers function checks if a given geometry completely covers another geometry. For this to be true, the "contained" geometry's interior and boundaries must be covered by the "covering" geometry's interior and boundaries. The interiors do not need to overlap.

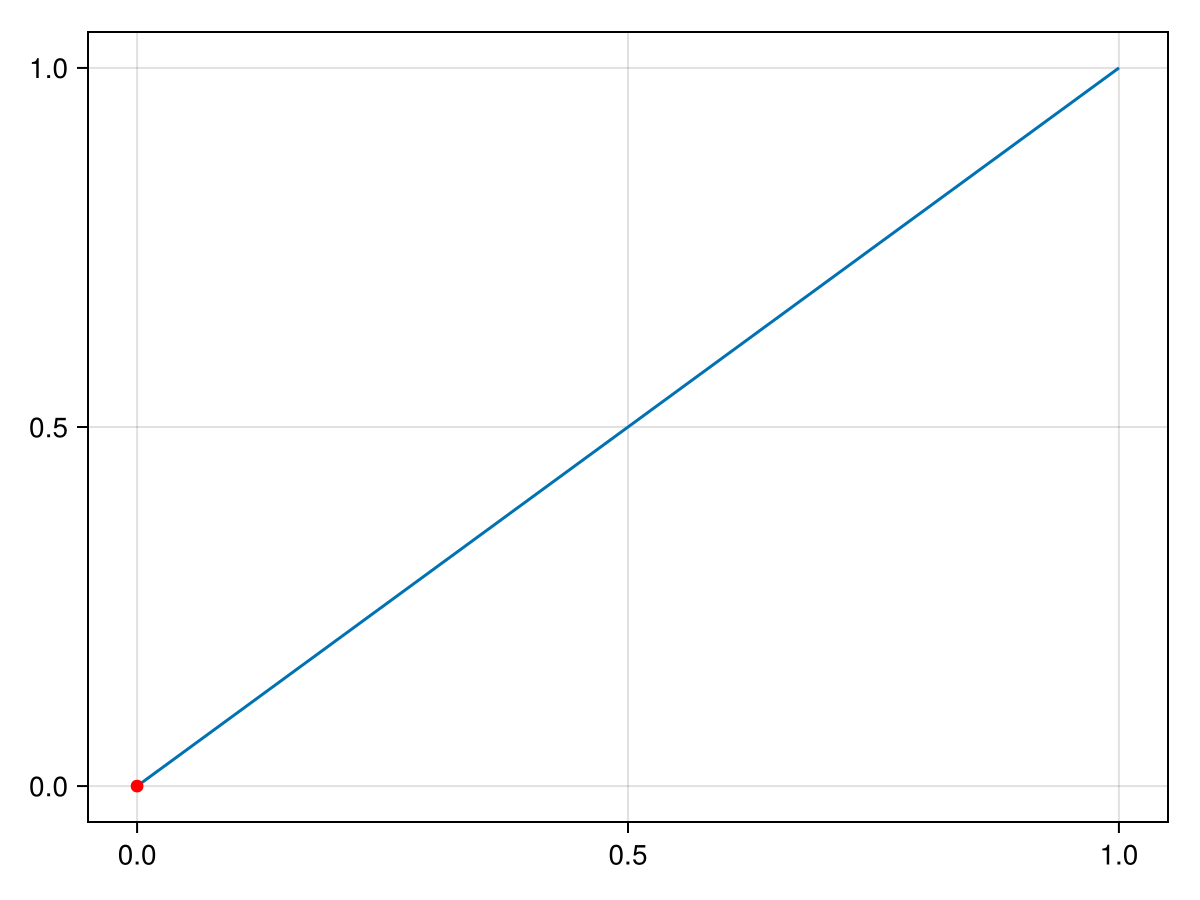

To provide an example, consider these two lines:

import GeometryOps as GO
import GeoInterface as GI
using Makie
using CairoMakie

p1 = (0.0, 0.0)
p2 = (1.0, 1.0)
l1 = GI.Line([p1, p2])

f, a, p = lines(GI.getpoint(l1))
scatter!(p1, color = :red)
f

GO.covers(l1, p1)  # returns true
GO.covers(p1, l1)  # returns false

false

Implementation

This is the GeoInterface-compatible implementation.

Given that covers is the exact opposite of coveredby, we simply pass the two inputs variables, swapped in order, to coveredby.

"""
    covers(g1::AbstractGeometry, g2::AbstractGeometry)::Bool

Return true if the first geometry is completely covers the second geometry,
The exterior and boundary of the second geometry must not be outside of the
interior and boundary of the first geometry. However, the interiors need not
intersect.

`covers` returns the exact opposite result of `coveredby`.

# Examples

```jldoctest
import GeometryOps as GO, GeoInterface as GI
l1 = GI.LineString([(1.0, 1.0), (1.0, 2.0), (1.0, 3.0), (1.0, 4.0)])
l2 = GI.LineString([(1.0, 1.0), (1.0, 2.0)])

GO.covers(l1, l2)

output

true
```
"""
covers(g1, g2)::Bool = GeometryOps.coveredby(g2, g1)

---
