Intersection checks

export intersects

What is intersects?

The intersects function checks if a given geometry intersects with another geometry, or in other words, the either the interiors or boundaries of the two geometries intersect.

To provide an example, consider these two lines:

import GeometryOps as GO
import GeoInterface as GI
using Makie
using CairoMakie

line1 = GI.Line([(124.584961,-12.768946), (126.738281,-17.224758)])
line2 = GI.Line([(123.354492,-15.961329), (127.22168,-14.008696)])
f, a, p = lines(GI.getpoint(line1))
lines!(GI.getpoint(line2))
f

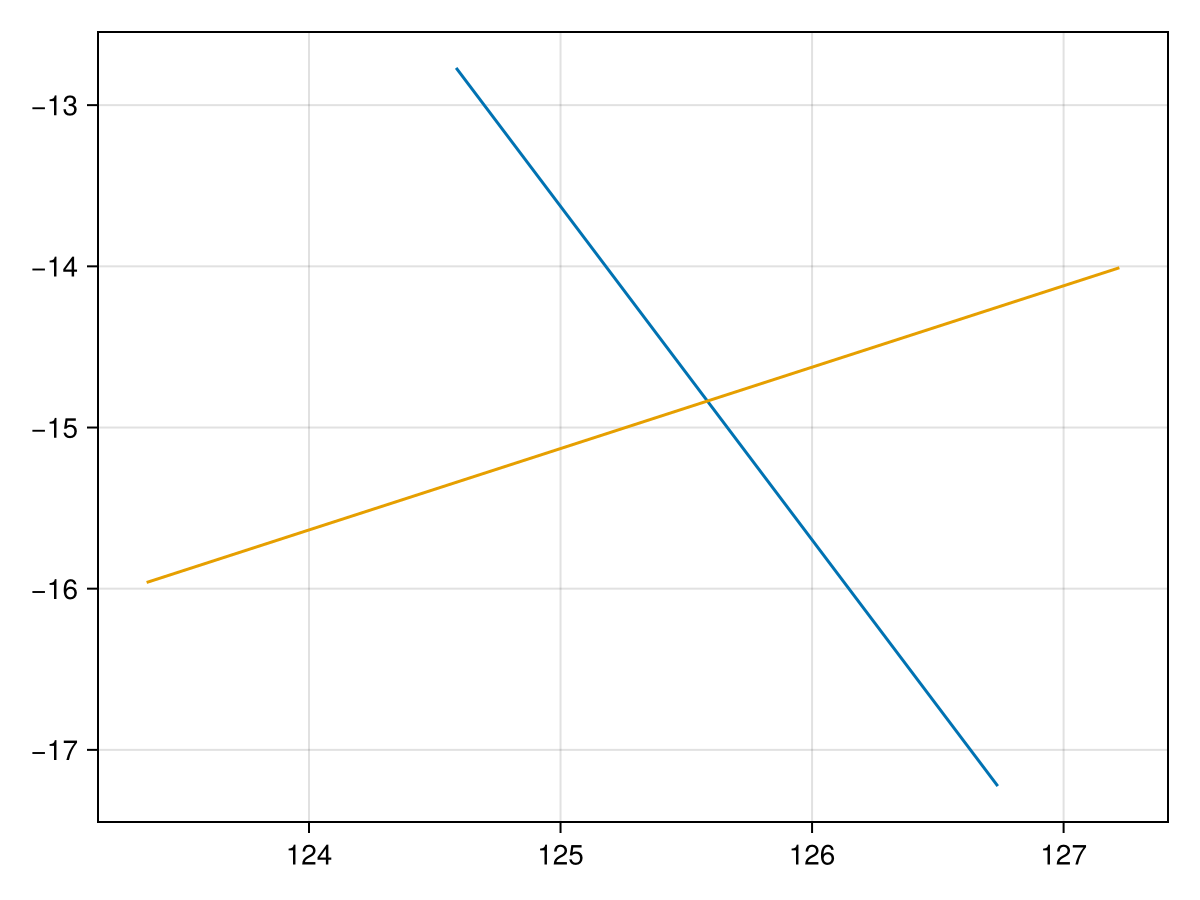

We can see that they intersect, so we expect intersects to return true, and we can visualize the intersection point in red.

GO.intersects(line1, line2)  # true

true

Implementation

This is the GeoInterface-compatible implementation.

Given that intersects is the exact opposite of disjoint, we simply pass the two inputs variables, swapped in order, to disjoint.

"""
    intersects(geom1, geom2)::Bool

Return true if the interiors or boundaries of the two geometries interact.

`intersects` returns the exact opposite result of `disjoint`.

# Example

```jldoctest
import GeoInterface as GI, GeometryOps as GO

line1 = GI.Line([(124.584961,-12.768946), (126.738281,-17.224758)])
line2 = GI.Line([(123.354492,-15.961329), (127.22168,-14.008696)])
GO.intersects(line1, line2)

output

true
```
"""
intersects(geom1, geom2) = !disjoint(geom1, geom2)

---
